#include <ppb_file_ref.h>

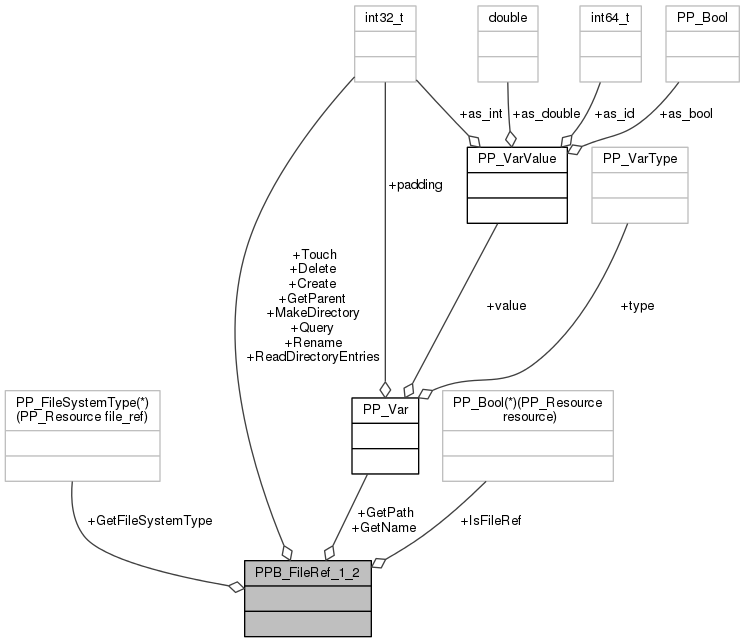

Collaboration diagram for PPB_FileRef_1_2:

Public Attributes
PP_Resource(*	Create )(PP_Resource file_system, const char *path)

PP_Bool(*	IsFileRef )(PP_Resource resource)

PP_FileSystemType(*	GetFileSystemType )(PP_Resource file_ref)

struct PP_Var(*	GetName )(PP_Resource file_ref)

struct PP_Var(*	GetPath )(PP_Resource file_ref)

PP_Resource(*	GetParent )(PP_Resource file_ref)

int32_t(*	MakeDirectory )(PP_Resource directory_ref, int32_t make_directory_flags, struct PP_CompletionCallback callback)

int32_t(*	Touch )(PP_Resource file_ref, PP_Time last_access_time, PP_Time last_modified_time, struct PP_CompletionCallback callback)

int32_t(*	Delete )(PP_Resource file_ref, struct PP_CompletionCallback callback)

int32_t(*	Rename )(PP_Resource file_ref, PP_Resource new_file_ref, struct PP_CompletionCallback callback)

int32_t(*	Query )(PP_Resource file_ref, struct PP_FileInfo *info, struct PP_CompletionCallback callback)

int32_t(*	ReadDirectoryEntries )(PP_Resource file_ref, struct PP_ArrayOutput output, struct PP_CompletionCallback callback)

Detailed Description

The PPB_FileRef struct represents a "weak pointer" to a file in a file system. This struct contains a PP_FileSystemType identifier and a file path string.

Definition at line 64 of file ppb_file_ref.h.

Member Data Documentation

PP_Resource(* PPB_FileRef_1_2::Create)(PP_Resource file_system, const char *path)

Create() creates a weak pointer to a file in the given file system. File paths are POSIX style.

Parameters

[in]	resource	A `PP_Resource` corresponding to a file system.
[in]	path	A path to the file. Must begin with a '/' character.

Returns: A PP_Resource corresponding to a file reference if successful or 0 if the path is malformed.

Definition at line 76 of file ppb_file_ref.h.

int32_t(* PPB_FileRef_1_2::Delete)(PP_Resource file_ref, struct PP_CompletionCallback callback)

Delete() deletes a file or directory. If file_ref refers to a directory, then the directory must be empty. It is an error to delete a file or directory that is in use. It is not valid to delete a file in the external file system.

Parameters

[in]	file_ref	A `PP_Resource` corresponding to a file reference.
[in]	callback	A `PP_CompletionCallback` to be called upon completion of Delete().

Returns: An int32_t containing an error code from pp_errors.h.

Definition at line 183 of file ppb_file_ref.h.

PP_FileSystemType(* PPB_FileRef_1_2::GetFileSystemType)(PP_Resource file_ref)

GetFileSystemType() returns the type of the file system.

Parameters

[in] file_ref A PP_Resource corresponding to a file reference.

Returns: A PP_FileSystemType with the file system type if valid or PP_FILESYSTEMTYPE_INVALID if the provided resource is not a valid file reference.

Definition at line 98 of file ppb_file_ref.h.

struct PP_Var(* PPB_FileRef_1_2::GetName)(PP_Resource file_ref)

GetName() returns the name of the file.

Parameters

[in] file_ref A PP_Resource corresponding to a file reference.

Returns: A PP_Var containing the name of the file. The value returned by this function does not include any path components (such as the name of the parent directory, for example). It is just the name of the file. Use GetPath() to get the full file path.

Definition at line 110 of file ppb_file_ref.h.

PP_Resource(* PPB_FileRef_1_2::GetParent)(PP_Resource file_ref)

GetParent() returns the parent directory of this file. If file_ref points to the root of the filesystem, then the root is returned.

Parameters

[in] file_ref A PP_Resource corresponding to a file reference.

Returns: A PP_Resource containing the parent directory of the file. This function fails if the file system type is PP_FileSystemType_External.

Definition at line 134 of file ppb_file_ref.h.

struct PP_Var(* PPB_FileRef_1_2::GetPath)(PP_Resource file_ref)

GetPath() returns the absolute path of the file.

Parameters

[in] file_ref A PP_Resource corresponding to a file reference.

Returns: A PP_Var containing the absolute path of the file. This function fails if the file system type is PP_FileSystemType_External.

Definition at line 121 of file ppb_file_ref.h.

PP_Bool(* PPB_FileRef_1_2::IsFileRef)(PP_Resource resource)

IsFileRef() determines if the provided resource is a file reference.

Parameters

[in] resource A PP_Resource corresponding to a file reference.

Returns: PP_TRUE if the resource is a PPB_FileRef, PP_FALSE if the resource is invalid or some type other than PPB_FileRef.

Definition at line 87 of file ppb_file_ref.h.

int32_t(* PPB_FileRef_1_2::MakeDirectory)(PP_Resource directory_ref, int32_t make_directory_flags, struct PP_CompletionCallback callback)

MakeDirectory() makes a new directory in the file system according to the given make_directory_flags, which is a bit-mask of the PP_MakeDirectoryFlags values. It is not valid to make a directory in the external file system.

Parameters

[in]	file_ref	A `PP_Resource` corresponding to a file reference.
[in]	make_directory_flags	A bit-mask of the `PP_MakeDirectoryFlags` values.
[in]	callback	A `PP_CompletionCallback` to be called upon completion of MakeDirectory().

Returns: An int32_t containing an error code from pp_errors.h.

Definition at line 150 of file ppb_file_ref.h.

int32_t(* PPB_FileRef_1_2::Query)(PP_Resource file_ref, struct PP_FileInfo *info, struct PP_CompletionCallback callback)

Query() queries info about a file or directory. You must have access to read this file or directory if it exists in the external filesystem.

Parameters

[in]	file_ref	A `PP_Resource` corresponding to a file reference.
[out]	info	A pointer to a `PP_FileInfo` which will be populated with information about the file or directory.
[in]	callback	A `PP_CompletionCallback` to be called upon completion of Query().

Returns: An int32_t containing an error code from pp_errors.h.

Definition at line 216 of file ppb_file_ref.h.

int32_t(* PPB_FileRef_1_2::ReadDirectoryEntries)(PP_Resource file_ref, struct PP_ArrayOutput output, struct PP_CompletionCallback callback)

ReadDirectoryEntries() reads all entries in a directory.

Parameters

[in]	file_ref	A `PP_Resource` corresponding to a directory reference.
[in]	output	An output array which will receive `PP_DirectoryEntry` objects on success.
[in]	callback	A `PP_CompletionCallback` to run on completion.

Returns: An int32_t containing an error code from pp_errors.h.

Definition at line 231 of file ppb_file_ref.h.

int32_t(* PPB_FileRef_1_2::Rename)(PP_Resource file_ref, PP_Resource new_file_ref, struct PP_CompletionCallback callback)

Rename() renames a file or directory. Arguments file_ref and new_file_ref must both refer to files in the same file system. It is an error to rename a file or directory that is in use. It is not valid to rename a file in the external file system.

Parameters

[in]	file_ref	A `PP_Resource` corresponding to a file reference.
[in]	new_file_ref	A `PP_Resource` corresponding to a new file reference.
[in]	callback	A `PP_CompletionCallback` to be called upon completion of Rename().

Returns: An int32_t containing an error code from pp_errors.h.

Definition at line 200 of file ppb_file_ref.h.

int32_t(* PPB_FileRef_1_2::Touch)(PP_Resource file_ref, PP_Time last_access_time, PP_Time last_modified_time, struct PP_CompletionCallback callback)

Touch() Updates time stamps for a file. You must have write access to the file if it exists in the external filesystem.

Parameters

[in]	file_ref	A `PP_Resource` corresponding to a file reference.
[in]	last_access_time	The last time the file was accessed.
[in]	last_modified_time	The last time the file was modified.
[in]	callback	A `PP_CompletionCallback` to be called upon completion of Touch().

Returns: An int32_t containing an error code from pp_errors.h.

Definition at line 166 of file ppb_file_ref.h.

The documentation for this struct was generated from the following file:

ppb_file_ref.h
