3.3 Web Checkout SDK

3.3.1 Overview

Samsung Pay Web Checkout enables seamless, secure payments on your website using cards stored in the Samsung Wallet app. This JavaScript-based SDK makes it easy to integrate Samsung Pay into your desktop or mobile web checkout experience.

Key Features

  • Cross-Device Support
    Users can complete purchases on both desktop and mobile browsers.
  • Samsung Wallet Integration
    Payments are authorized using cards saved in the Samsung Wallet mobile app.
  • Secure Credential Transmission
    Payment credentials are securely generated on the mobile device and transmitted to your website.
  • Multiple Authentication Options
    Users can bind their device by either:
    • Entering their Samsung account email, or
    • Scanning a QR code displayed on your checkout page.

User scenario with the service flow

The following figures describe the user scenario for making a purchase through Samsung Pay Web Checkout.

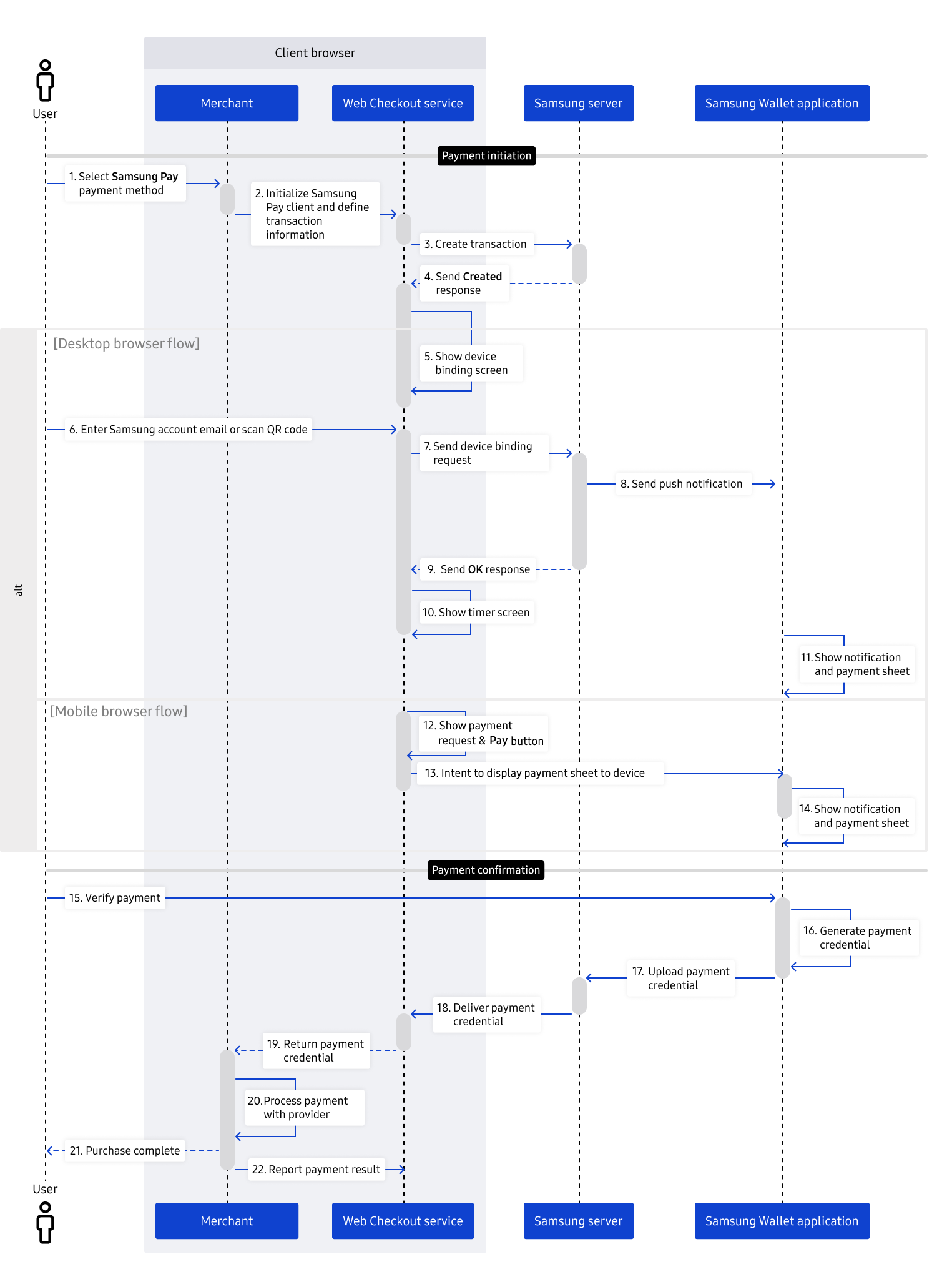

The following figure illustrates the Samsung Pay Web Checkout flow.

Payment Initiation & Device Binding

  1. The user selects Samsung Pay as the payment method at checkout.
  2. A Web Checkout UI launches, prompting the user to link their device:
    • Enter Samsung account email, or
    • Scan a QR code using their mobile device.
  3. A push notification is sent to their Samsung Wallet app.

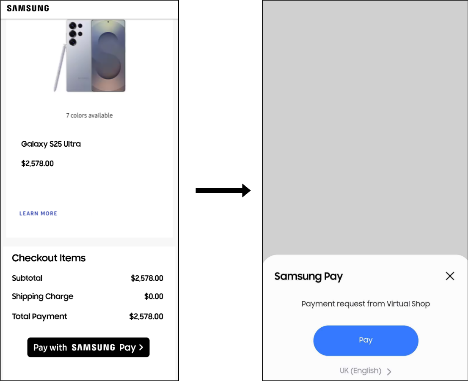

For mobile devices:

  1. The user selects Samsung Pay as the payment method at checkout.
  2. A payment request pop-up is displayed and prompts the user to select the “Pay” button. The Samsung Wallet app automatically opens on the current device.



User confirmation on mobile device

  1. The user taps the notification on their device.
  2. The Samsung Wallet app opens a payment sheet showing order details.
  3. The user selects a payment card and authorizes the purchase.

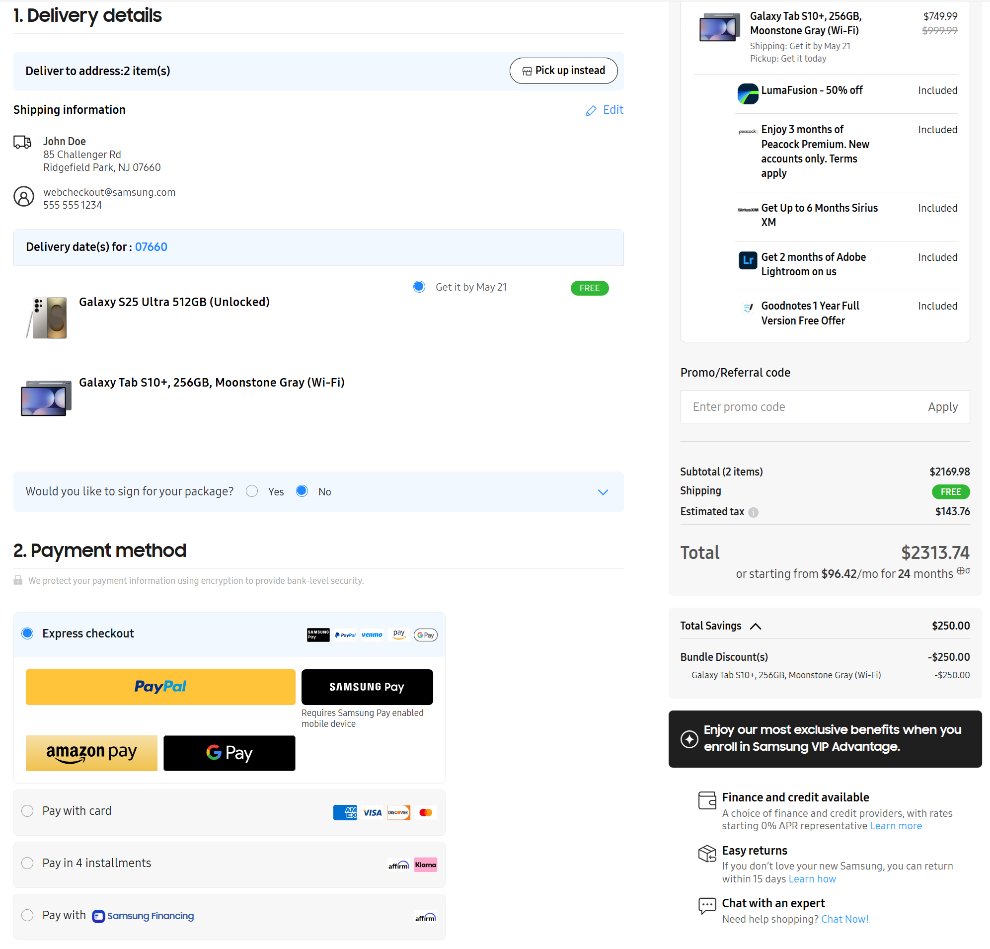

Payment completion

  1. A "Verified" screen is shown in the browser as the transaction is confirmed.
  2. Your website receives a secure payment credential from Samsung Pay.
  3. You forward this credential to your payment processor to complete the purchase.





3.3.2 Web Checkout Integration

Samsung Pay Web Checkout enables seamless online payments using Samsung Wallet on supported mobile devices. Let’s us look how to integrate the Web Checkout SDK into your website and process secure, tokenized transactions.

Prerequisites

Before integrating Samsung Pay Web Checkout, ensure the following:

  • Samsung Pay Merchant ID: You must complete the partner onboarding process to obtain a valid Merchant ID.
  • Tokenization Support: Your acquirer and issuer must support tokenized in-app transactions per card network standards.

Web Checkout Integration Steps

To integrate the Samsung Pay Web Checkout solution to your website:

Include the Samsung Pay SDK

Add the SDK to your website's frontend:

<script src="https://img.mpay.samsung.com/gsmpi/sdk/samsungpay_web_sdk.js"></script>

Configure Payment Methods

Define the supported card brands, protocol, API version, and your service (merchant) ID:

const paymentMethods = {
  "version": "2",
  "serviceId": "dcc1cbb25d6a470bb42926",
  "protocol": "PROTOCOL_3DS",
  "allowedBrands": ["visa","mastercard"]
}

Initialize the Samsung Pay Client

Set the environment:

  • "STAGE" – Testing with device
  • "STAGE_WITHOUT_APK" – Testing without device (simulated)
  • "PRODUCTION" – Live environment
const samsungPayClient = new SamsungPay.PaymentClient({environment: "STAGE"});

const samsungPayClient = new SamsungPay.PaymentClient({environment: "STAGE", nonce: "your-nonce"});

Check Availability

Verify Samsung Pay availability in the user’s browser/device:

samsungPayClient.isReadyToPay(paymentMethods).then(function(response) {
  if (response.result) {
    // add a payment button
  }
}).catch(function(err) {
  console.error(err);
});

Add Samsung Pay Button

Use the official Samsung Pay button asset and adhere to branding guidelines:

<div id="samsungpay-container">
  <button id="samsung-pay-btn">
      <img src="/your/path../samsung-pay-button.png" alt="Samsung Pay" style="{follow the Samsung's official branding guideline}" />
  </button>
</div>

Attach Click Handler

Add your event handler to the button:

document.getElementById("samsung-pay-btn").addEventListener("click", onSamsungPayButtonClicked);

Create the Transaction Detail

Define transaction metadata such as order info, merchant details, and total amount:

const transactionDetail = {
  "orderNumber": "DSTRF345789dsgTY",
  "merchant": {
    "name": "Virtual Shop",
    "url": "virtualshop.com",
    "id": "xn7qfnd",
    "countryCode": "US"
  },
  "amount": {
    "option": "FORMAT_TOTAL_ESTIMATED_AMOUNT",
    "currency": "USD",
    "total": 300
  }
}

Launch Payment Flow

Trigger the Web Checkout interface when the user clicks the payment button. When the onClick() event is triggered, your event handler must call the loadPaymentSheet() method, which initiates the Web Checkout UI flow. When the user confirms the payment from their mobile device, you receive the paymentCredential object generated by the device.

samsungPayClient.loadPaymentSheet(paymentMethods, transactionDetail).then(paymentCredential => {
  // Forward paymentCredential to your payment provider const paymentResult = {
  const paymentResult = {
    "status": "CHARGED",
    "provider": "PG Name"
  }
  samsungPayClient.notify(paymentResult);
}).
catch(error => {

Payment credential sample

The paymentCredential is the resulting output of the loadPaymentSheet() method. Sample paymentCredential JSON output (using JWE-only)

{
  "method": "3DS",
  "recurring_payment": false,
  "card_brand": "visa",
  "card_last4digits": "8226",
  "3DS": {
    "type": "S",
    "version": "100",
    "data": "eyJhbGciOiJSU0ExXzUiLCJraWQiOiIxZHlsbkFVRVJtTk53Z0J0MmVzcEVWU1pOSWRZZGhqbVI3bzhQcDVKaGVBPSIsInR5cCI6IkpPU0UiLCJjaGFubmVsU2VjdXJpdHlDb250ZXh0IjoiUlNBX1BLSSIsImVuYyI6IkExMjhHQ00ifQ.JyKXN2h9pk1Uj-4kNPuij1r49yKw7-3aElZnHAdzsZTcLVJLhOYjOmujfl1H21yQ_5rMdwZ9Lj6o67j8M6KN_1dNKvNQAUgi203oL5teGF-J15n_pcINJ1nYcfYIVOhazIdbg9FQ2nztS_mUu9cvYKIZ-iFsuz6RfL9aiuoaKjpcTZPN8LWlddZxZme3j86sD45i-AhXWBuJFVy9D2ZRT1sddgOxGOrJRzy3o5S29PYbKAYtJMcpc_Jicu-sDSX3S1Snm_CVHAqiCcOxYidIh6hFwo35FssWysvxu8yFPgTWbcdaI9uJkptVR7npNp1cH85JA3DvW3MI87v-pwiqmw.HdZesNBxU0d0T68e.pCv1CSIBW7JGtlgFOOvmeBM-wGGpW9rHOnBkDb_qWWFL_CuF7_0nj_kNuozQ4pUDK0_vzkTbHi3kV0Gt2YBmQs6ZfpnXD3CDPgK_lYiO8Z8xCiASoz5vLTamJG7n5mAAdXxPVqWtCPk_TbKsVE2ke8W7R3U4kApFJl2EnE06J3E4rkae367X8_aOXy2l3LHoeqZl4lFsNtFs71xfc-s9h5-Bgi2clKBa-9hLRtpbxTUmWa830rwywm7M.Fs5-tfBxQ73L7ICRRWKblA"
  }
}

The decrypted output will be similar to this:

{
    "amount": "100",
    "currency_code": "USD",
    "utc": "1719388643614",
    "eci_indicator": "5",
    "tokenPAN": "5185731679991253",
    "tokenPanExpiration": "0127",
    "cryptogram": "AKkeaVcvwHfmAMmud6r3AoACFA=="
}

3.3.3 Decrypting Payment Credentials

For security, Samsung Pay encrypts the payment credential using JSON Web Encryption (JWE). You must decrypt this payload to extract the payment token and process the transaction.

To decrypt the payment credentials:

  • Generate a DER file from your private key:
  • $ openssl pkcs8 -topk8 -in Merchant.key -outform DER -nocrypt -out rsapriv.der

Decrypt the JWE encrypted data.

Sample implementation in Java:

import java.nio.file.Files;
import java.nio.file.Paths;
import java.security.KeyFactory;
import java.security.interfaces.RSAPrivateKey;
import java.security.spec.PKCS8EncodedKeySpec;
import java.util.Base64;

import javax.crypto.Cipher;
import javax.crypto.spec.GCMParameterSpec;
import javax.crypto.spec.SecretKeySpec;

import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;

public class DeveloperPortalSample {

  public static void main(String[] args) throws Exception {
    // Example JWE string (replace with your actual JWE and private key path)
    String encryptedText = {{encryptedPayload}};
    String privateKeyPath = "./rsapriv.der";

    String PRIVATE_KEY = Base64.getEncoder().encodeToString(Files.readAllBytes(Paths.get(privateKeyPath)));
    String result = decryptJWE(encryptedText, PRIVATE_KEY);
    System.out.println(result);
  }

  public static String decryptJWE(String encryptedText, String privateKeyText) throws Exception {
    // Split JWE parts by '.'
    String delims = "[.]";
    String[] tokens = encryptedText.split(delims);
    if (tokens.length < 5) {
    throw new IllegalArgumentException("Invalid JWE format");
  }

    // Decode and parse JWE header
    byte[] headerBytes = Base64.getUrlDecoder().decode(tokens[0]);
    String headerJson = new String(headerBytes);
    ObjectMapper mapper = new ObjectMapper();
    JsonNode header = mapper.readTree(headerJson);

    // Extract algorithm information from header
    String alg = header.has("alg") ? header.get("alg").asText() : "RSA1_5";
    String enc = header.has("enc") ? header.get("enc").asText() : "A128GCM";

    // Convert private key
    byte[] privateKeyBytes = Base64.getDecoder().decode(privateKeyText);
    PKCS8EncodedKeySpec privateKeySpec = new PKCS8EncodedKeySpec(privateKeyBytes);
    KeyFactory keyFactory = KeyFactory.getInstance("RSA");
    RSAPrivateKey privateKey = (RSAPrivateKey) keyFactory.generatePrivate(privateKeySpec);

    // Decode encrypted key, IV, ciphertext, and authentication tag
    byte[] encKey = Base64.getUrlDecoder().decode(tokens[1]);
    byte[] iv = Base64.getUrlDecoder().decode(tokens[2]);
    byte[] cipherText = Base64.getUrlDecoder().decode(tokens[3]);
    byte[] tag = Base64.getUrlDecoder().decode(tokens[4]);

    // Create Cipher instance based on key management algorithm
    String keyManagementAlgorithm;
    boolean useAAD = false;

    if ("RSA-OAEP".equals(alg)) {
      keyManagementAlgorithm = "RSA/ECB/OAEPPadding";
                                                        // At Samsung, OAEP uses AAD (Additional Authenticated Data)
                                                        useAAD = true;
                                                       } else if ("RSA1_5".equals(alg)) {
      keyManagementAlgorithm = "RSA/ECB/PKCS1Padding";
                                                                                         // while RSA1_5 does not use AAD.
                                                                                         useAAD = false;
                                                                                        } else {
                                                                                         throw new IllegalArgumentException("Unsupported key management algorithm: " + alg);
                                                                                        }

    // Decrypt the CEK (Content Encryption Key)
    Cipher decryptCipher = Cipher.getInstance(keyManagementAlgorithm);
    decryptCipher.init(Cipher.DECRYPT_MODE, privateKey);
    byte[] plainEncKey = decryptCipher.doFinal(encKey);

    // Create Cipher instance based on content encryption algorithm
    String contentEncryptionAlgorithm;
    int gcmTagLength;

    if ("A128GCM".equals(enc) || "A256GCM".equals(enc)) {
      contentEncryptionAlgorithm = "AES/GCM/NoPadding";
                                                                          gcmTagLength = 128;
                                                                         } else {
      throw new IllegalArgumentException("Unsupported content encryption algorithm: " + enc);
                                                                                                                                                     }

    // Decrypt the content
    Cipher contentCipher = Cipher.getInstance(contentEncryptionAlgorithm);
    GCMParameterSpec gcmParameterSpec = new GCMParameterSpec(gcmTagLength, iv);
    SecretKeySpec keySpec = new SecretKeySpec(plainEncKey, "AES");
    contentCipher.init(Cipher.DECRYPT_MODE, keySpec, gcmParameterSpec);

    // AAD handling: Use Base64Url-encoded header bytes as AAD
    if (useAAD) {
    byte[] encodedHeader = Base64.getUrlEncoder().withoutPadding().encode(headerBytes);
    contentCipher.updateAAD(encodedHeader);
  }

    // Concatenate cipherText and tag, then pass to doFinal
    byte[] cipherData = new byte[cipherText.length + tag.length];
    System.arraycopy(cipherText, 0, cipherData, 0, cipherText.length);
    System.arraycopy(tag, 0, cipherData, cipherText.length, tag.length);
    byte[] plainText = contentCipher.doFinal(cipherData);

    return new String(plainText, java.nio.charset.StandardCharsets.UTF_8);
  }

Sample implementation in C#

using System;
using System.IO;
using System.Text;
using System.Text.Json.Nodes;
using System.Security.Cryptography;

public static void Main(string[] args)
{
          		// Example JWE string (replace with your actual JWE and private key path)
          		string encryptedText = {{encryptedPayload}};
          		string privateKeyPath = ./rsapriv.der";

          		// Read the private key file (DER format)
          		byte[] privateKeyBytes = File.ReadAllBytes(privateKeyPath);

          		// Decrypt the JWE
          		string result = decryptJWE(encryptedText, privateKeyBytes);

          		// Print the result
          		Console.WriteLine(result);
          	}

          	public static string decryptJWE(string encryptedText, byte[] privateKeyBytes)
          	{
          		// Split JWE parts by '.'
          		var parts = encryptedText.Split('.');
          		if (parts.Length < 5)
          			throw new ArgumentException("Invalid JWE format");

          		// Decode and parse JWE header
          		var headerBytes = Base64UrlDecode(parts[0]);
          		var headerJson = Encoding.UTF8.GetString(headerBytes);
          		var header = JsonNode.Parse(headerJson);

          		// Extract algorithm information from header
          		string alg = header?["alg"]?.ToString() ?? "RSA1_5";
          		string enc = header?["enc"]?.ToString() ?? "A128GCM";

          		// Convert private key (assume PKCS8 DER)
          		using var rsa = RSA.Create();
          		rsa.ImportPkcs8PrivateKey(privateKeyBytes, out _);

          		// Decode encrypted key, IV, ciphertext, and authentication tag
          		var encKey = Base64UrlDecode(parts[1]);
          		var iv = Base64UrlDecode(parts[2]);
          		var cipherText = Base64UrlDecode(parts[3]);
          		var tag = Base64UrlDecode(parts[4]);

          		// Create Cipher instance based on key management algorithm
          		bool useAAD = false;
          		if (alg == "RSA-OAEP")
          		{
          			// At Samsung, OAEP uses AAD (Additional Authenticated Data)
          			useAAD = true;
          		}
          		else if (alg == "RSA1_5")
          		{
          			// while RSA1_5 does not use AAD.
          			useAAD = false;
          		}
          		else
          		{
          			throw new ArgumentException($"Unsupported key management algorithm: {alg}");
          		}

          		// Decrypt the CEK (Content Encryption Key)
          		byte[] plainEncKey = alg == "RSA-OAEP"
          			? rsa.Decrypt(encKey, RSAEncryptionPadding.OaepSHA1)
          			: rsa.Decrypt(encKey, RSAEncryptionPadding.Pkcs1);

          		// Decrypt the content
          		using var aes = new AesGcm(plainEncKey, 16);
          		var plainText = new byte[cipherText.Length];
          		if (useAAD)
          		{
          			// AAD handling: Use Base64Url-encoded header bytes as AAD
          			var encodedHeader = Encoding.ASCII.GetBytes(Base64UrlEncode(headerBytes));
          			aes.Decrypt(iv, cipherText, tag, plainText, encodedHeader);
          		}
          		else
          		{
          			aes.Decrypt(iv, cipherText, tag, plainText);
          		}
          		return Encoding.UTF8.GetString(plainText).TrimEnd('\0');
          	}

          	private static byte[] Base64UrlDecode(string input)
          	{
          		string s = input.Replace('-', '+').Replace('_', '/');
          		switch (s.Length % 4)
          		{
          			case 2: s += "=="; break;
          			case 3: s += "="; break;
          		}
          		return Convert.FromBase64String(s);
          	}

          	private static string Base64UrlEncode(byte[] input)
          	{
          		return Convert.ToBase64String(input)
          			.TrimEnd('=')
          			.Replace('+', '-')
          			.Replace('/', '_');
          	}

3.3.4 Integration on WebView

Configure WebView enablements

  • To invoke Samsung Pay application in WebView, you should override the shouldOverrideUrlLoading method.
  • Javascript and DOM Storage are disabled in a WebView by default. You can enable through the WebSettings attached to your WebView.
  • WebSettings allows any website to use JavaScript and DOM Storage. For more information, visit WebSettings.

Sample code (Kotlin)

import android.webkit.webView
import android.webkit.webViewClient
import android.content.Intent
import android.content.ActivityNotFoundException

companion object {
    private const val SAMSUNG_PAY_URL_PREFIX: String = "samsungpay"
    private const val SAMSUNG_APP_STORE_URL: String = "samsungapps://ProductDetail/com.samsung.android.spay"
}

private lateinit var webView: WebView

webView.settings.run {
    javaScriptEnabled = true
    domStorageEnabled = true
}

webView.webViewClient = object: WebViewClient() {
    override fun shouldOverrideUrlLoading(
        view: WebView,
        request: WebResourceRequest
    ): Boolean {
        // get URL from WebResourceRequest
        val url = request.url.toString()

        // add below if statement to check if URL is Samsung Pay or Samsung App Store deep link
        if (url.startsWith(SAMSUNG_PAY_URL_PREFIX) || url.startsWith(SAMSUNG_APP_STORE_URL), ignoreCase = false) {
            try {
                val intent = Intent.parseUri(url, Intent.URI_INTENT_SCHEME)
                startActivity(intent)
            } catch (e: ActivityNotFoundException) {
                // Exception would be occured if the Samsung Wallet app is not installed.

                // go to install Samsung Wallet app from market
                val installIntent = Intent.parseUri("samsungapps://ProductDetail/com.samsung.android.spay", Intent.URI_INTENT_SCHEME)
                installIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK)
                startActivity(installIntent)
            }
            // return true will cause that the URL will not be loaded in WebView
            return true
        }
        // the remaining part of the shouldOverrideUrlLoading method code

        // return false when you want to load URL automatically by WebView
        return false
    }
}

3.3.5 Sample Implementation

The following sample code implements the Samsung Pay Web Checkout button on a merchant site. The implementation steps are described in Web Checkout Integration.

For information about the content of the PaymentMethods, TransactionDetail, and PaymentCredential data structures, see the API Reference.

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <script src="https://img.mpay.samsung.com/gsmpi/sdk/samsungpay_web_sdk.js"></script>
</head>
<body>
<div id="samsungpay-container"></div>
<script>
    const samsungPayClient = new SamsungPay.PaymentClient({environment: "STAGE"});

    let paymentMethods = {
        version: "2",
        serviceId: "dcc1cbb25d6a470bb42926",
        protocol: "PROTOCOL_3DS",
        allowedBrands: ["visa","mastercard"]
    }

    samsungPayClient.isReadyToPay(paymentMethods).then(function(response) {
        if (response.result) {
            createAndAddButton();
        }
    }).catch(function(err) {
        console.error(err);
    });

    function createAndAddButton() {
        const samsungPayButton = samsungPayClient.createButton({
            onClick: onSamsungPayButtonClicked,
            buttonStyle: "black",
            type: "buy"
        });

        document.getElementById("samsungpay-container").appendChild(samsungPayButton);
    }

    function onSamsungPayButtonClicked() {
        let transactionDetail = {
            orderNumber: "DSTRF345789dsgTY",
            merchant: {
                name: "Virtual Shop",
                url: "virtualshop.com",
                id: "xn7qfnd",
                countryCode: "US"
            },
            amount: {
                option: "FORMAT_TOTAL_ESTIMATED_AMOUNT",
                currency: "USD",
                total: 300
            }
        }

        samsungPayClient.loadPaymentSheet(paymentMethods, transactionDetail).then(function(paymentCredential) {
            console.log("paymentCredential: ", paymentCredential);

            const paymentResult = {
                "status": "CHARGED",
                "provider": "PG Name"
            }
            samsungPayClient.notify(paymentResult);
        }).catch(function(error) {
            console.log("error: ", error);
        });
    }
</script>
</body>
</html>

3.3.6 API Reference

Let us learn the description of data structures used in the Samsung Pay Web Checkout API integration.

PaymentMethods

The PaymentMethods object defines the payment methods that the merchant supports.

"PaymentMethods" data structure elements

Key

 Type

 Required

 Description
version

 String

 Required

 Samsung Pay API version
The supported value is 2.
serviceId

 String

 Required

 Merchant ID that is assigned after onboarding
protocol

 String

 Required

 Payment protocol type
The supported value is PROTOCOL_3DS.
allowedBrands

 List<String>

 Required

 List of supported card brands
The possible values are:
  • visa
  • mastercard
  • amex
  • discover
  • elo
  • mada
  • cb
  • jaywan(TBD)
isRecurring

 boolean

 Optional

 Value if payment is recurring
The default value is false.
isBillingAddressRequired

 boolean

 Optional

 Value if billing address must be included in the payment credentials.
The default value is false.
isCardholderNameRequired

 boolean

 Optional

 Value if cardholder name must be included in the payment credentials.
The default value is false.
isCpfCardRequired

 boolean

 Optional

 Value if CPF must be included in the payment credentials.
The default value is false.
merchantChoiceBrands

 Object

 Optional

 Data structure containing configuration information for a co-badged card.
merchantChoiceBrands.type

 String

 Required

 Co-badged card display option for the payment sheet
The possible values are:
  • MANDATORY = Only the brand defined in merchantChoiceBrands.brands is enabled
  • PREFERENCE = The brand defined in merchantChoiceBrands.brands is selected by default but the user can change it
merchantChoiceBrands.brands

 List<String>

 Required

 List of supported brands for the co-badged card
The possible values are:
  • mada
  • cb
extraPaymentInfo

 Object

 Optional

 Data structure containing additional supported features
extraPaymentInfo.id

 String

 Required

 Feature ID for the additional feature
The possible values are:
  • COMBOCARD = Combo Card
  • DSRP = Digital Secure Remote Payment
extraPaymentInfo.type

 String

 Optional

 Feature type, if the value of extraPaymentInfo.id is DSRP
The possible values are:
  • UCAF = Universal Cardholder Authentication Field
  • ICC = Integrated Circuit Card
The default value is UCAF.

TransactionDetail

The TransactionDetail object contains the transaction information for the user's purchase.

"TransactionDetail" data structure elements:

Key

 Type

 Required

 Description
orderNumber

 String

 Required

 Order number of the transaction
The following characters are allowed: [A-Z][a-z][0-9,-]
merchant

 Object

 Required

 Data structure containing merchant information
merchant.name

 String

 Required

 Merchant name
merchant.url

 String

 Required

 Merchant domain URL
The maximum length is 100 characters.
merchant.id

 String

 Conditional

 A unique identifier, known as the Merchant Unique ID, is assigned by either merchant or the Payment Gateway (PG) or Payment Orchestrator (PO) when a merchant is onboarded into their system.
This ID is required in specific scenarios, namely when onboarding as a PG or PO with Samsung, or if the token brand is "mada" or the merchantChoiceBrands.brands includes "mada".
The character limit for this ID varies: 15 characters for "mada" token brands and 45 characters for all other cases
merchant.countryCode

 String

 Required

 Merchant country code
ISO-3166-1 alpha-2
amount

 Object

 Required

 Data structure containing the payment amount
amount.option

 String

 Required

 Display format for the total amount on the payment sheet
The possible values are:
  • FORMAT_TOTAL_ESTIMATED_AMOUNT = Display "Total (Estimated amount)" and total amount
  • FORMAT_TOTAL_PRICE_ONLY = Display the total amount only
amount.currency

 String

 Required

 Currency code
The maximum length is 3 characters.
amount.total

 String

 Required

 Total payment amount in the currency specified by amount.currency
The amount must be an integer (for example, 300) or in a format valid for the currency (such as 2 decimal places after a separator, for example, 300.50).
type

 String

 Optional

 Transaction type
This value is specifically supported for mada tokens and will not apply to other token types.
The possible values are:
  • PURCHASE
  • PREAUTHORIZATION
The default value is PURCHASE.

PaymentCredential

The PaymentCredential object contains the payment credential information generated by the Samsung Wallet application on the user's mobile device.

PaymentCredential data structure elements:

Key

 Type

 Required

 Description
card_brand

 String

 Required

 Brand of the payment card
card_last4digit

 Object

 Required

 Last 4 digits of the card number
3DS

 Object

 Required

 Data structure containing the generated 3DS data
3DS.type

 String

 Optional

 3DS type
The value is S for Samsung Pay.
3DS.version

 String

 Required

 3DS version
The value for the current version is 100.
3DS.data

 String

 Required

 Encrypted payment credential data
recurring_payment

 boolean

 Required

 Value if credential is enabled for recurring
The default value is false.
encryptedMessage

 String

 Conditional

 Encrypted string(JWE) that contains billing address, cardholder name and CPF when required by partner.
It can be decrypted in the same way as Payment Credentials.

EncryptedMessage

The decrypted encryptedMessage object in PaymentCredential object contains billing address, cardholder name and CPF when required by partner.

"EncryptedMessage" data structure elements.

Key

 Type

 Required

 Description
billingAddress

 Object

 Conditional

 Billing Address
billingAddress.addressLine1

 String

 Required

 Address Line 1
billingAddress.addressLine2

 String

 Optional

 Address Line 2
billingAddress.city

 String

 Required

 City
billingAddress.state

 String

 Conditional

 State
billingAddress.countryCode

 String

 Required

 Country Code (ISO 3166-1 alpha-3)
billingAddress.postalCode

 String

 Required

 Postal Code
cardholderName

 String

 Conditional

 Cardholder Name
cpf

 Object

 Conditional

 Brazilian CPF
cpf.name

 String

 Required

 The full name of the individual associated with the CPF.
cpf.number

 String

 Required

 The Brazilian taxpayer number (CPF), consisting of exactly 11 digits, without hyphens or dots.

PaymentResult

The PaymentResult object contains the payment result information during transaction processing, and after the payment is processed with PG network.

PaymentResult data structure elements.

Key

 Type

 Required

 Description
status

 String

 Required

 Payment status
The possible values are:
  • CHARGED = payment was charge successfully
  • CANCELED = payment was canceled by either user, merchant, or acquirer
  • REJECTED = payment was rejected by acquirer
  • ERRED = an error occurred during the payment process
provider

 String

 Optional

 Payment provider (PG) name

3.3.7 Partner Checklist

Checklist for Samsung Pay Web Checkout.

On the merchant website, verify if the following functions works as expected:

  • Samsung Pay is available in the payment options section of the website.
  • Samsung Pay logo is displayed correctly in the payment options section.
  • After the Samsung Pay payment option is selected, the Account/Scan QR and Email input options are displayed, and redirects the user to the Samsung Wallet app on their mobile device.
    • For the Account option, “Request to pay” and “Cancel” buttons are displayed.
    • For the Email option, “Next” and “Cancel” buttons, and a way to reset ID are displayed.
    • For the Scan QR option, the request automatically times out if you wait for more than 5 minutes, and you are redirected to the checkout screen.
    • Once redirected to the Samsung Wallet app, “Pay” and “Cancel” buttons are displayed.
  • On a mobile browser, after the Samsung Pay payment option is selected, “Continue with Samsung Pay” button is displayed.
    • Samsung Checkout screen is displayed.
    • The merchant domain name is displayed.
    • The order summary which contains the amount due, and product name is displayed.
    • The payment method selected is “Samsung Wallet”.
    • The contact information displays the customer’s name, phone, and email. You should be able to modify this information, if needed.
    • “Continue” and “Cancel” buttons are displayed.

On the Samsung Wallet app via your test device, verify if the following functions works as expected:

  • A default card is displayed on the payment sheet.
  • The card name and last 4 digits of the card is displayed on the payment sheet.
  • You are able to change the card when multiple cards are enrolled in Samsung Pay.
  • If you requested for the transaction using billingAddress parameter, the billing address is displayed on the payment sheet.
  • The billing address can be filled and modified.
  • Depending on the amount.option parameter, the payment amount is displayed as “Total” or “Total (estimated amount)”.
  • The merchant name is displayed on the payment sheet.
  • The PIN/biometric authentication option is displayed to proceed with payment confirmation.
  • The “Verified” checkmark is displayed in blue upon payment confirmation.
  • If you are testing with actual cards, and Samsung Wallet is in production environment, confirm the transaction notification on the mobile phone is displayed once the purchase is made.

On transaction completion, verify the following on the merchant website:

  • The payment completion screen is displayed on the mobile or non-mobile device, depending where the transaction is initiated.

You are able to initiate a payment using Samsung Pay with a card already added for the merchant’s website (basic card).
