3.4 Save to Pay

3.4.1 Overview

Save to Pay (S2P) is a secure integration service by Samsung Pay that enables partners to store and access user payment credentials for future transactions. The communication between the partner’s backend and the Save to Pay server is protected by Mutual SSL (Two-Way SSL) authentication, ensuring that both the client and server validate each other's identities.

Key Highlights:

  • Uses a custom Certificate Authority (CA) managed by Samsung Pay TechOps.
  • Requires IP allowlisting for both staging and production environments.
  • Communication is secured over TLS 1.2.
  • Involves both inbound (Partner → S2P) and outbound (S2P → Partner) API communications, secured via SSL and authenticated with client certificates and headers.



3.4.2 Endpoints

There are 2 endpoints available - Staging & Production.

  • Staging will be used for development and integration testing.
  • Access to these endpoints is restricted to allowlisted IP addresses. Partner should provide the external IP addresses during the onboarding process.
  • Supported protocols - TLSv1.2
Staging

 https://s2p-api.stg.mpay.samsung.com
Production

 https://s2p-api.mpay.samsung.com

3.4.3 Onboarding Steps

To begin integration, follow these onboarding steps:

Step 1: Submit a Certificate Signing Request (CSR)

Partners must generate and send a CSR to Samsung, along with the following details:

  • Common Name (CN) for the client certificate
  • Partner server base URL for receiving outbound notifications from the S2P server
  • External IP address to be added to the access allowlist

Step 2: Receive Certificate and Partner ID

  • Samsung will sign the CSR using its internal CA and return the client certificate.
  • A unique Partner ID will be issued for each environment.
  • This Partner ID must be included in the headers of every request made to the S2P server.

3.4.4 Authentication Overview

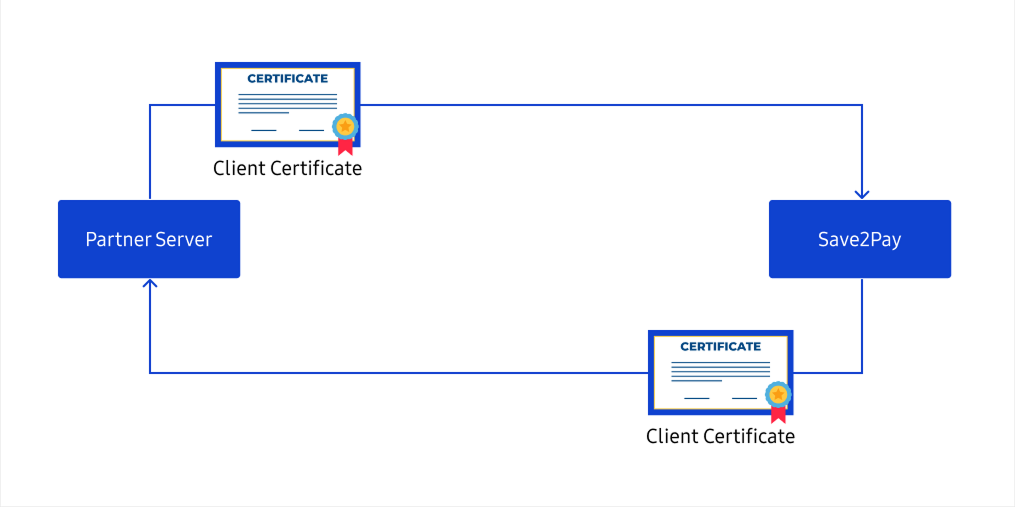

Mutual SSL is used for both inbound and outbound communication between the partner and the Save to Pay system.

INBOUND: Partner → Save to Pay Server

  • All requests must be secured with mutual SSL.
  • Partners connect using the client certificate issued by Samsung.
  • Every request must include the Partner ID in the header.
  • Partner IDs are environment-specific (different for staging and production).

OUTBOUND: Save to Pay Server → Partner

  • S2P communicates with partner servers over mutual SSL.
  • Samsung will use a client certificate signed by the partner’s CA.
  • Partner must be able to validate S2P’s certificate for inbound requests.

3.4.5 Security Protocols

  • Protocol: TLS v1.2
  • Authentication: Mutual SSL (Two-Way TLS)
  • Certificates:
    • Partner-to-S2P: Samsung issues the client certificate.
    • S2P-to-Partner: Partner issues the client certificate to Samsung.

3.4.6 Best Practices

The best practices are:

  • Keep your client certificate secure and monitor expiration dates.
  • Log and monitor all inbound/outbound requests for verification and debugging.
  • Maintain a staging environment for ongoing testing.

3.4.7 External API Specification

The External API Specification in the context of Samsung's Save to Pay (S2P) service refers to the structured guidelines and protocols that define how external partner systems can securely interact with the S2P platform. This specification encompasses authentication methods, data formats, API endpoints, and integration workflows to ensure seamless and secure provisioning of payment cards into the Samsung Wallet app.

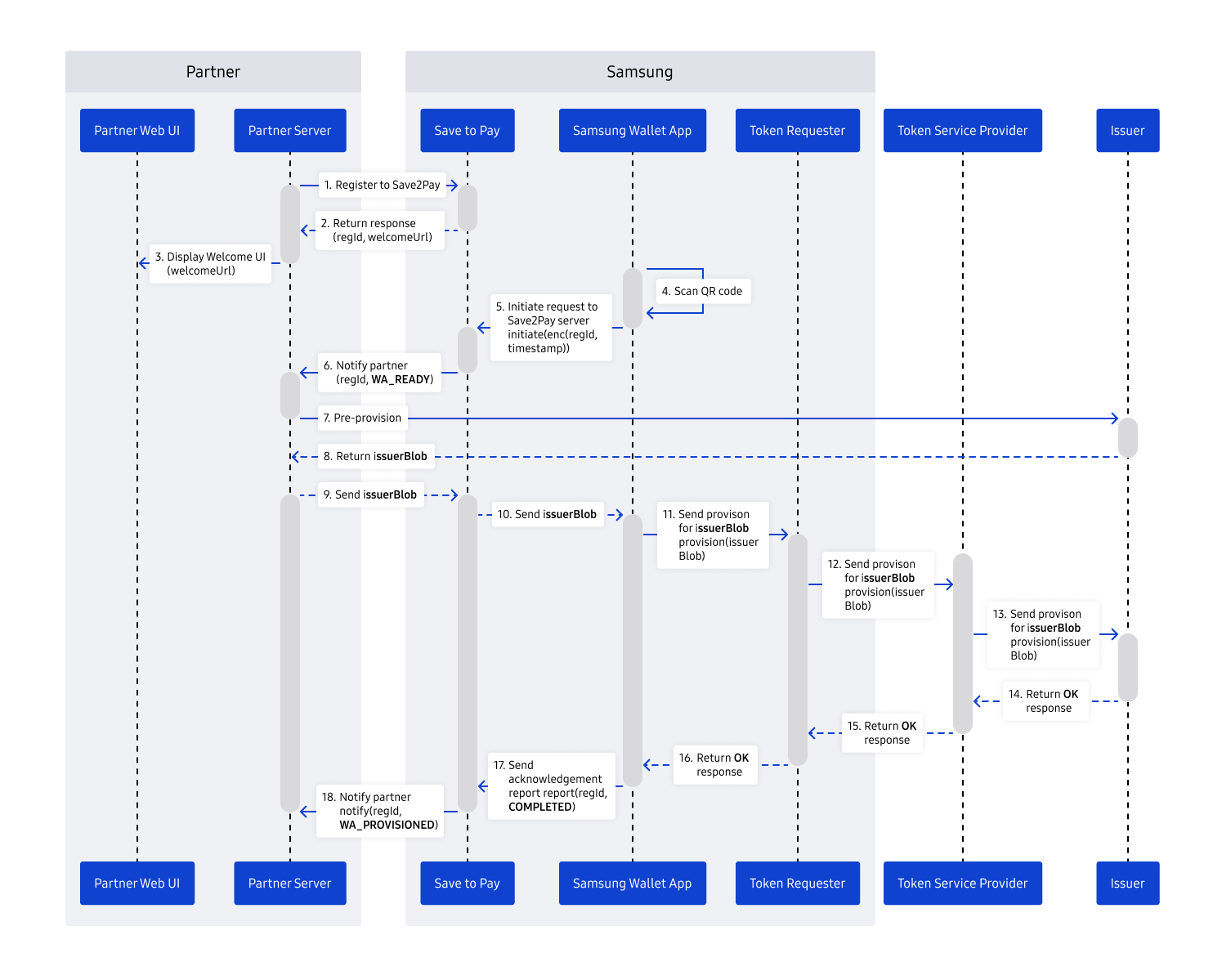

3.4.8 Integration Workflow

The integration involves several key steps:

Initialization & UI Setup

Step 1–2: Register Session

  • The partner server initiates the flow by registering with the S2P server.
  • On success, it receives:
    • regId: A unique session identifier (must be cached for session tracking).
    • welcomeUrl: A hosted UI URL that guides the user through the card addition process.

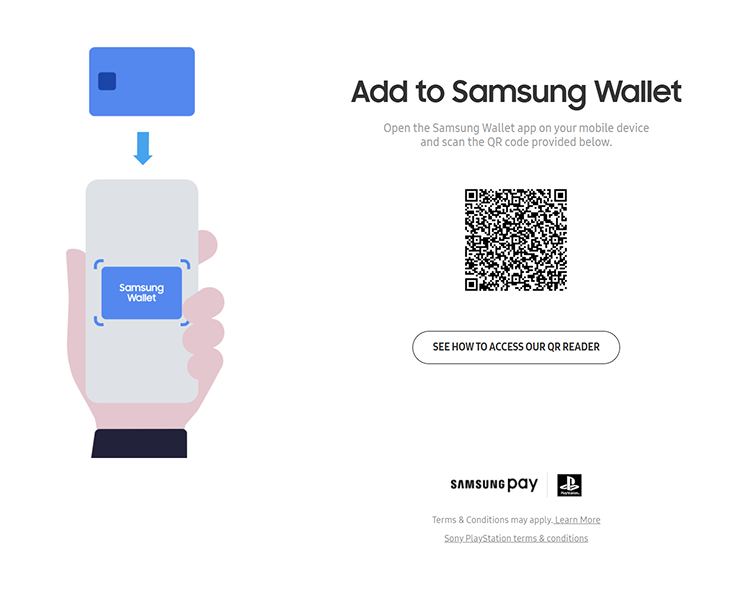

Step 3: Display Welcome UI

  • The partner's frontend embeds the welcomeUrl UI (typically in an <iframe>).
  • The UI shows a QR code and clear instructions for the user to continue.

User Interaction

Step 4: User Launches Samsung Wallet (SPay WA)

  • The user opens the Samsung Wallet app and scans the QR code shown on the Welcome UI.

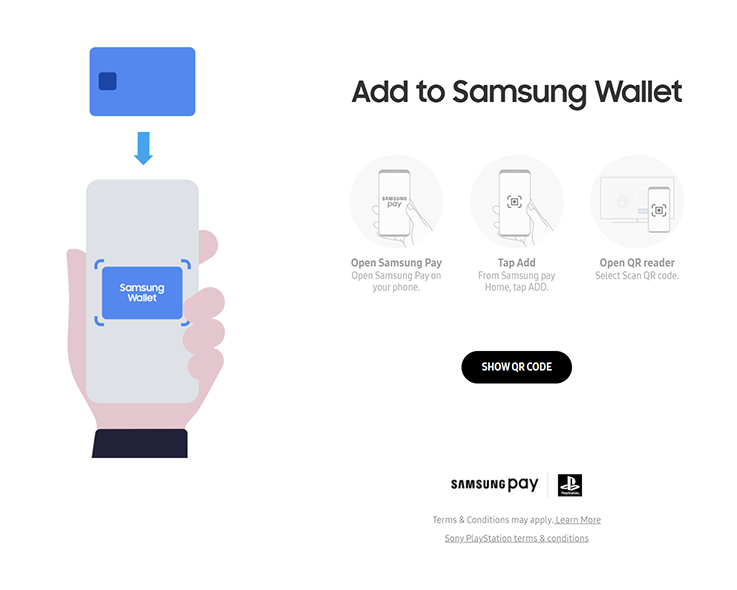

  • If the app is not installed, the UI directs the user to:
    • Download the Samsung Wallet app.
    • Sign in with their Samsung Account.

Session Linking & Device Validation

Step 5–6: Initiate Request & Device Association

  • SPay WA scans the QR code and triggers an initiate request to the S2P server.
  • S2P validates the payload and links the device info with the regId.
  • The server also forwards the device metadata to the partner server:
    • Device ID
    • Wallet ID
    • User ID
  • The Welcome UI updates to show that linking was successful.

Card Pre-Provisioning

Step 7–8: Partner Pre-Provisions Card

  • The partner server contacts the issuer to:
    • Pre-provision the card.
    • Retrieve the encrypted issuerBlob (which contains secure card/token information).

Step 9: Return IssuerBlob

  • The partner server includes the issuerBlob in its notify response back to the S2P server.
  • This blob:
    • Is encrypted (only the issuer can decrypt it).
    • Is device- and wallet-specific (only usable by the original device).
    • Format depends on the issuer.

Step 10: Deliver to Device

  • The S2P server includes the issuerBlob and any other metadata in the initiate response back to the Spay WA.

Tokenization

Steps 11–16: Add Token in Samsung Pay

  • SPay WA initiates the standard tokenization process using the issuerBlob.
  • The token is securely added to the Samsung Wallet for use in NFC or online transactions.

Completion & Confirmation

Step 17: Notify S2P Server

  • After successful provisioning, SPay WA notifies the S2P server that the card/token was added successfully for the given regId.

Step 18: Notify Partner

  • The S2P server sends a final callback to the partner server confirming the process is completed for the regId.

3.4.9 Data Types

Type

 JSON Type

 Format

 Description
String

 string

 Size: 2048
Boolean

 boolean
Object

 object
Enum

 string

 Pattern: [A-Za-z0-9_]{1,256

 Values from a limited set are only allowed. Each field of type Enum will define the values allowed.
PhoneNumber

 string

 Pattern: [0-9+()-]+
UUID

 string

 Pattern: [a-zA-Z0-9-_]{26,128}

 Unique identifier
URL

 string

 Size: 2048

 Must be an absolute URL defined by RFC 2396: Uniform Resource Identifiers (URI): Generic Syntax. Supported schemes - http, https
Timestamp

 number

 int64 - signed 64 bits

 Unix epoch time in milliseconds.
CountryCode

 string

 Size: 2

 Unique identifier

3.4.10 Inbound API Specification – Save2Pay

The Inbound API Specification for Save2Pay defines the protocols and requirements for partner servers to interact with the Save2Pay system. This specification ensures secure and standardized communication during the push provisioning process.

General Contract

Base URL

https://s2p-api.mpay.samsung.com/ext/v1

Security

Mutual SSL is required.

Common Headers

Header Name

 Type

 Validation

 Description
Request-Id

 UUID

 Required

 Unique identifier for the request
Partner-Id

 UUID

 Required

 Unique identifier that is provided to Partner during onboarding.
Partner-Id

 UUID

 Required

 Request-Id echoed back in the response headers

Common HTTP Error Codes

HTTP Code

 Description

 Application Code

 Message
400

 Bad Request

 400.1

 Invalid Data
500

 Internal Server Error

 500.1

 Internal Server Error
503

 Service Not Available

 503.1

 Service Temporarily Unavailable (Retry-After header is required)
503

 Service Not Available

 503.2

 API Temporarily Unavailable (Retry-After header is required)

3.4.11 Registration

Partner server registers a session for the user. As a result, a unique registration ID will be generated. Partner server should make sure that this is called only once for one card.

A welcomeURL will also be returned. Partner server can display the welcomeURL in browser or email. Upon rendering, a QR code will be displayed and users can use their SPay WA to scan the QR code.

WelcomeURL has an expiration date, partner server should check if it's still valid before rendering. If it's expired, a GET call will return the new URL.

Request

POST /registrations

Body

Key

 Type

 Validation

 Description

 Example
registration.email

 String

 Optional

 User email address
registration.enforceEmailMatching

 Boolean. Default is false.

 Optional

 Enforce only SPay WA with the same email address can provision. Enforcement is only against the email address that's provided by the partner.

 true
registration.hideEmail

 Boolean. Default is false

 Optional

 Hide email field
registration.phone

 PhoneNumber

 Optional

 User phone number
registration.enforcePhoneMatching

 Boolean

 Optional. Default is false

 Enforce only SPay WA with the same phone number can provision. Enforcement is only against the phone number that's provided by the partner.

 true
registration.hidePhone

 Boolean

 Optional. Default is false

 Hide phone field
registration.welcomeCallbackUrl

 URL

 Optional

 Callback URL that the Welcome UI will redirect to once the user successfully linked a SPay WA account
registration.allowOfflineCommunication

 Boolean

 Optional. Default is false.

 If true, S2P will communicate to the user via email and/or phone number to facilitate the provisioning process
registration.data

 Object

 Optional

 Arbitrary data blob that'll be passed to the device when an account is linked.
registration.custom.cardName

 String

 Required

 Card name that'll show on the welcome page.
registration.custom.cardArtUrl

 URL

 Required

 CardArt URL that'll show on the welcome page
registration.custom.partnerName

 String

 Required

 Partner name that'll show on the welcome page.
registration.custom.partnerLogoUrl

 URL

 Required

 Partner Logo URL that'll show on the welcome page.
registration.custom.partnerTncUrl

 URL

 Optional

 Partner TnC URL that'll show on the welcome page.
registration.id

 UUID

 Required

 Registration ID that identifies this session
registration.status

 Enum - PENDING, LINKED

 Required

 Registration status

 PENDING
registration.welcomeUrlExpiration

 Timestamp

 Required

 WelcomeUrl expiration timestamp in milliseconds

Response

Status

HTTP/1.1 201 Created

Header

Name

 Value
Content-Type

 application/json

Example

POST /ext/v1/registrations
{
 "email": "user@gmail.com",
 "enforceEmailMatching": true,
 "phone": "14089998888",
 "enforcePhoneMatching": true,
 "custom": {
 "cardName": "XYZ Bank Credit Card",
 "cardArtUrl": "https://xyz.com/cardArt.png",
 "partnerName": "XYZ Bank",
 "partnerLogoUrl": "https://xyz.com/logo.png"
 }
}
HTTP/1.1 201 Created
{
 "id": "395ce2e29485442cbd9bacdc77105126",
 "welcomeUrl":
"https://s2p.stg.mpay.samsung.com/v1/welcome/eyJlbmMiOiJBMjU2R0NNIiw
iYWxnIjoiZGlyIn0..S0dNxrskDKjw8SbH.kG4UQhfwKkDNqrvIihkAqShq_JAYb99ct
TiZdZrwRN-qLhuZj4iMUYv1SAGEHAVYxlUAmaRWA.TlEKqcErR0jklC-fNQKcVA",
 "status": "PENDING",
 "welcomeUrlExpiration": 1505953396844
}

Get registration

Check existing registration status and/or get new welcomeUrl.

Request
GET /registrations/{regId}

Headers

Name

 Value

 Validation
partner-id

 Partner id value assigned by Samsung Wallet

 Required

Response

Status

HTTP/1.1 200 OK

Status

Name

 Value
Content-Type

 application/json

Body

Key

 Type

 Validation

 Description

 Example
registration.id

 UUID

 Required

 Registration ID that identify this session
registration.status

 Enum - PENDING, LINKED

 Required

 Registration status

 PENDING
registration.welcomeUrl

 URL

 Required

 This is the URL that partner can show to the user as an iFrame a separate page. It shows the QRCode and optionally user can enter email and phone number.
registration.welcomeUrlExpiration

 Timestamp

 Required

 WelcomeUrl expiration timestamp in milliseconds

Example
HTTP/1.1 200 OK

{
"id": "395ce2e29485442cbd9bacdc77105126",
"welcomeUrl":
"https://s2p.stg.mpay.samsung.com/v1/welcome/eyJlbmMiOiJBMjU2R0NNIiw
iYWxnIjoiZGlyIn0..S0dNxrskDKjw8SbH.kG4UQhfwKkDNqrvIihkAqShq_JAYb99ct
TiZdZrwRN-qLhuZj4iMUYv1SAGEHAVYxlUAmaRWA.TlEKqcErR0jklC-fNQKcVA",
"status": "PENDING",
"welcomeUrlExpiration": 1505953396844
}

Errors

Common HTTP Error Codes

HTTP Code

 Description

 Application Code

 Message
400

 Bad Request

 400.1

 Invalid Data
500

 Internal Server Error

 500.1

 Internal Server Error
503

 Service Not Available

 503.1

 Service Temporarily Unavailable (Retry-After header is required)
503

 Service Not Available

 503.2

 API Temporarily Unavailable (Retry-After header is required)

3.4.12 Outbound to Partner

The Outbound API Specification for Save2Pay defines how the Save2Pay server communicates with partner servers during the Push provisioning process. This specification ensures secure and standardized communication between Save2Pay and its partners.

General Contract

Base URL

Base URL for outbound APIs. To be provided by the partner during the onboarding process.

Security

Mutual SSL is required.

Common Headers

Header Name

 Type

 Validation

 Description
Request-Id

 UUID

 Required

 Unique identifier for the request
Partner-Id

 UUID

 Required

 Unique identifier that is provided to Partner during onboarding
Response-Id

 UUID

 Required

 Request-Id echoed back in the response headers

3.4.13 Event Notification

Notify partner for events.

Request

POST /notifications

Body

Key

 Description

 Type

 Validation

 Example
event.regId

 Registration ID

 UUID

 Required
event.type

 Event type

 Enum. Refer to Event Types and Errors for details

 Required
event.error

 More information about the failure

 Enum. Refer to Event Types and Errors for details.
event.desc

 Additional description of the event

 String

 Optional
User

 Container for user information

 Object

 Conditional. Will be present for Payment cards
user.id

 Samsung account ID

 String

 Required
emailMatches

 Is true if the email provided in the registration request matches with Samsung account email.

 Boolean

 Conditional. It is present only if an email was provided in the registration request.
phoneMatches

 Is true if the phone number provided in the registration request matches with device phone number

 Boolean

 Conditional. It is present only if a phone number was provided in the registration request.
device

 Container for device information

 Object

 Conditional. Will be present for Payment cards
device.id

 Device ID

 String

 Required
device.imeiLast4

 Last 4 of device IMEI

 String. Size: 4

 Optional
device.serialLast4

 Last 4 of device serial number

 String. Size: 4

 Optional
device.locale.country

 Device country code

 CountryCode

 Optional
wallet

 Container for wallet information

 Object

 Conditional. Will be present for Payment cards
wallet.id

 Wallet ID

 String

 Required

Event Types and Errors

Type

 Error

 Description
WA_READY

 Wallet app is ready for provisioning
WA_PROVISIONED

 Indicates card was successfully provisioned into the wallet
WA_PROVISION_FAILURE

 Indicates provisioning failed for some unknown reason
WA_PROVISION_FAILURE

 CARD_ALREADY_PRESENT

 Indicates card is already present.

Response

Status

HTTP/1.1 200 OK

Header

Name

 Value
Content-Type

 application/json

Body

card.data.encryptedData
Description

 Encrypted PAN data that will be returned to the device to provision the card
Type

 String. Size: 65536
Validation

 Conditional. Required if card data was not provided in the registration request.
Example

Example

POST /notifications
{
 "event": {
 "regId": "395ce2e29485442cbd9bacdc77105126",
 "type": "WA_READY"
 },
 "emailMatches": true,
 "phoneMatches": true,
 "user": {
 "id": "RcSm3gWJT9mXgFWy5sG123"
 },
 "wallet": {
 "id": "GpcCUgejS9GIiH8zch1111"
 },
 "device": {
 "id": "MTUxMTE5MDAwMjAwMDM1N999",
 "imeiLast4": "6166",
 "locale": {
 "country": "US"
 },
 "serialLast4": "4934"
 }
}
HTTP/1.1 200 OK
{
 "card": {
 "data": {
 "encryptedData": "*****"
 }
 }
}

3.4.14 Save to Pay JavaScript Library

JavaScript Library

interface saveToPayUI {
 /**
 * Shows the welcome UI. Redirects to welcomeCallbackUrl if it was
provided in the registration request when the page reaches one of
the final states.
 */
 static void showWelcomeModal(S2PRequest r);
 /**
 * Shows the welcome UI. Resolves the promise with the status and
optionally details after the welcome UI is closed.
 */
 static Promise <S2PResponse> showWelcomeModalPromise(S2PRequest
r);

 /**
 * API to close the modal
 */
 static void closeWelcomeModal();
};
dictionary S2PRequest {
 /**
 * welcomeUrl provided by Save2Pay server in the registration
response.
 */
 required DOMString welcomeUrl;
};
dictionary S2PResponse {
 required Status status,
 /**
 * true if triggered by iframe closing (by user or parent page)
 * false if the status is one of the final statuses, not triggered
by iframe closing. This can only happen in mobile android case.
 */
 required boolean isIframeClosed,
 /**
 * Optional error information if the status is 'FAILURE'
 */
 Details details
};
dictionary Details {
 required ErrorCode errorCode;
 DOMString message;
};
enum Status {
 "SUCCESS",
 "FAILURE",
 "DEVICE_NOT_SUPPORTED",
 "DEFAULT_PENDING"
};
enum ErrorCode {
 "INVALID_INPUT",
 "PROVISION_FAILURE",
 "NETWORK_ERROR",
 "UNKNOWN_ERROR",
 "CARD_ALREADY_PRESENT",
 "CANCELED"
};

USAGE

Code Block -1: HTML

<script
src="https://spay.samsung.com/s2p/libs/js/0.0.4/s2p.min.js"></script>

Code Block -2: JavaScript - Redirect

var input = {
 "welcomeUrl":
'https://s2p.mpay.samsung.com/v1/welcome/eyJlbmMiOiJBMjU2R0NNIiwiYWx
nIjoiZGlyIn0..eLtgW8qp56CIEzo2.mh34gjebgYP_M7-
gW0SbDL3CkaPlP7RtvMC8fe-TmQ2IPMP2rcC1A39qODbVW2sCHiArbooahBE77LPvL8NhKkaPI6MHYNL-Yz6GQx0Sjw.xfRTYjpdZxRnMlQ8Ffe6pg'
}
window.spay.saveToPayUI.showWelcomeModal(input)

Code Block- 3: JavaScript - Promise

var request = {
 "welcomeUrl":
'https://s2p.mpay.samsung.com/v1/welcome/eyJlbmMiOiJBMjU2R0NNIiwiYWx
nIjoiZGlyIn0..eLtgW8qp56CIEzo2.mh34gjebgYP_M7-
gW0SbDL3CkaPlP7RtvMC8fe-TmQ2IPMP2rcC1A39qODbVW2sCHiArbooahBE77LPvL8NhKkaPI6MHYNL-Yz6GQx0Sjw.xfRTYjpdZxRnMlQ8Ffe6pg'
}
function successCallback(response) {
 console.log(response.status)
}
function failureCallback(error) {
 console.log(error)
}
window.spay.saveToPayUI.showWelcomeModalPromise(request).then(succes
sCallback, failureCallback)

Promise Resolution

Device Type

 Description
Desktop, Tablet & Mobile - iOS

 JS library will resolve the promise -
1. When the iframe is closed by the user.
2. closeWelcomeModal function is invoked.
Mobile - Android

 JS library will resolve the promise as soon as the provisioning session ends. Or closeWelcomeModal function is invoked.
Provisioning session ends when one of the following has happened -
1. The card was successfully added.
2. There was some failure and card provisioning flow cannot continue further.
3. Timeout has happened.
4. User canceled the provisioning process.

Mobile Flows
